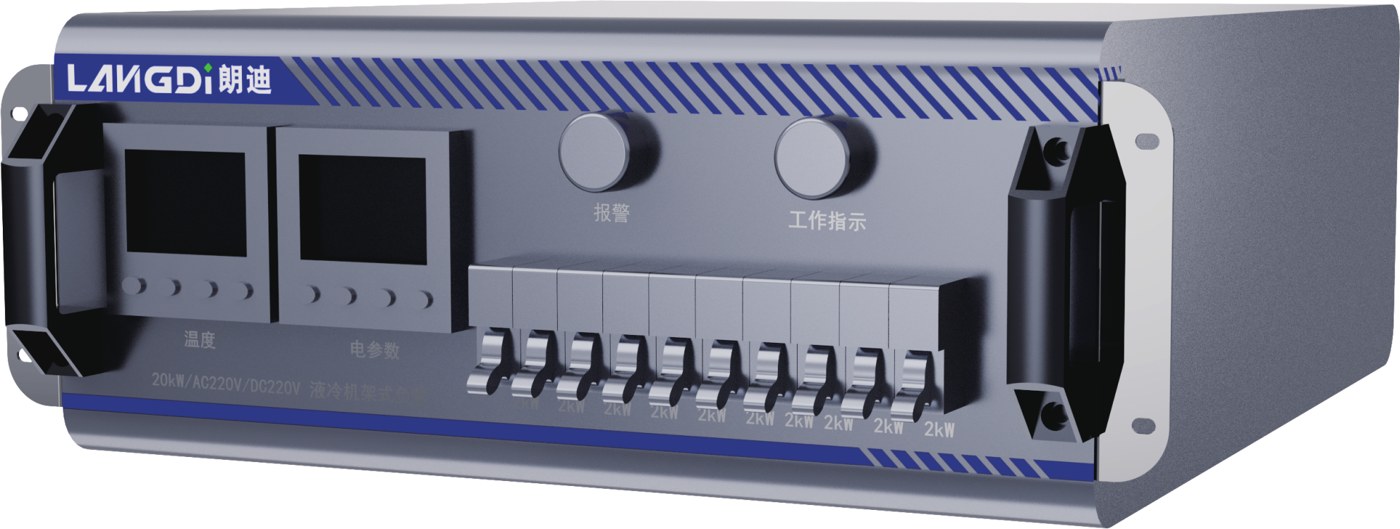

Rack-mounted Liquid-cooled Load
High power-density liquid-cooled load with ≤40dB noise, solving the heat-dissipation and noise limits of air-cooled loads in the high-power segment for indoor high-density deployment.
نظرة عامة
The rack-mounted liquid-cooled load is a high power-density testing device compatible with standard 19-inch cabinets. Liquid cooling (deionised water / ethylene glycol) gives ultra-high power density, low noise and long-term stable operation, designed for load testing and ageing verification of high-power UPS systems, inverters, PCS and server power supplies in data centres, laboratories, military and high-end industrial scenarios.
التطبيقات
- High-power UPS and PCS ageing verification in data centres
- Reliability testing of high-end power products
- Frequency converter and motor-drive ageing tests
المواصفات
| Voltage range | AC115/127/200/220/230/400–480V, DC270–540V |
|---|---|
| Rated frequency | 50/60Hz / DC |
| Heat dissipation | Liquid cooling (deionised water / ethylene glycol) |
| Noise level | ≤40dB |
| Power range | 10–100kW per unit |
هل تحتاج إلى تكوين وعرض سعر لجهازك؟ يرد مهندسونا خلال يوم عمل واحد.
الاستفسار عن هذا المنتجمنتجات ذات صلة

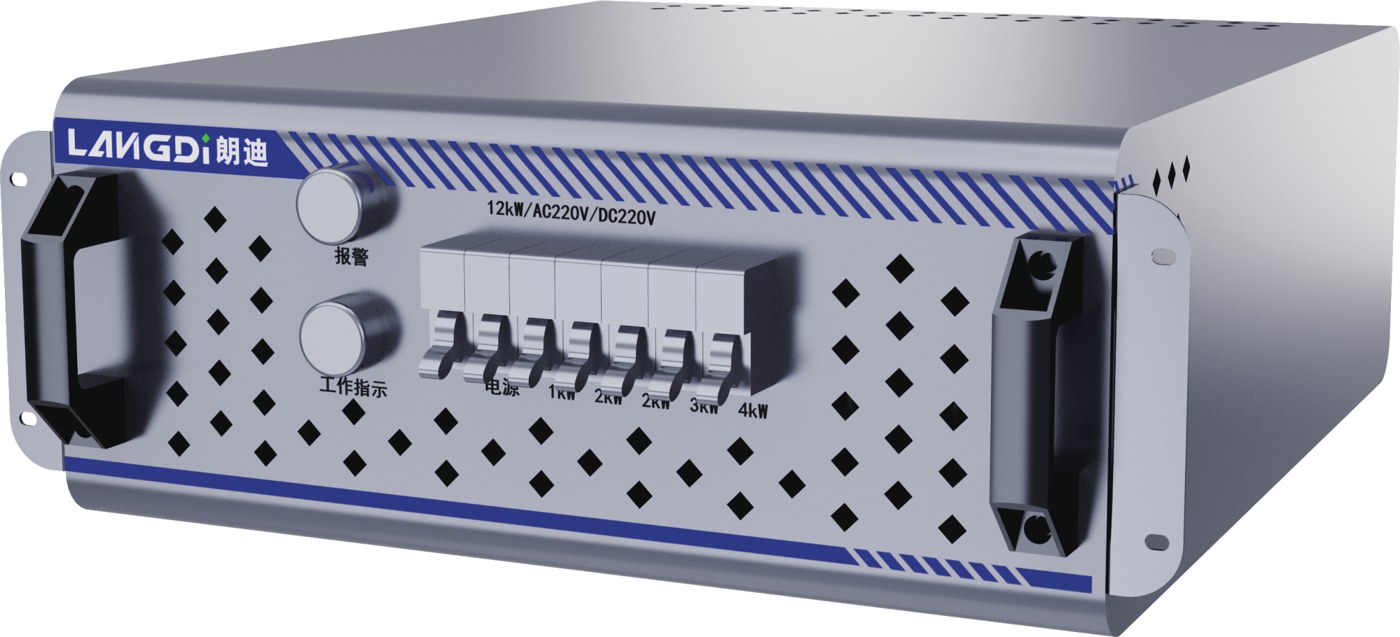

Forced air-cooled load device compatible with standard 19-inch cabinets, from 2U to 6U, for power ageing verification in data centres, communication rooms and laboratories.
