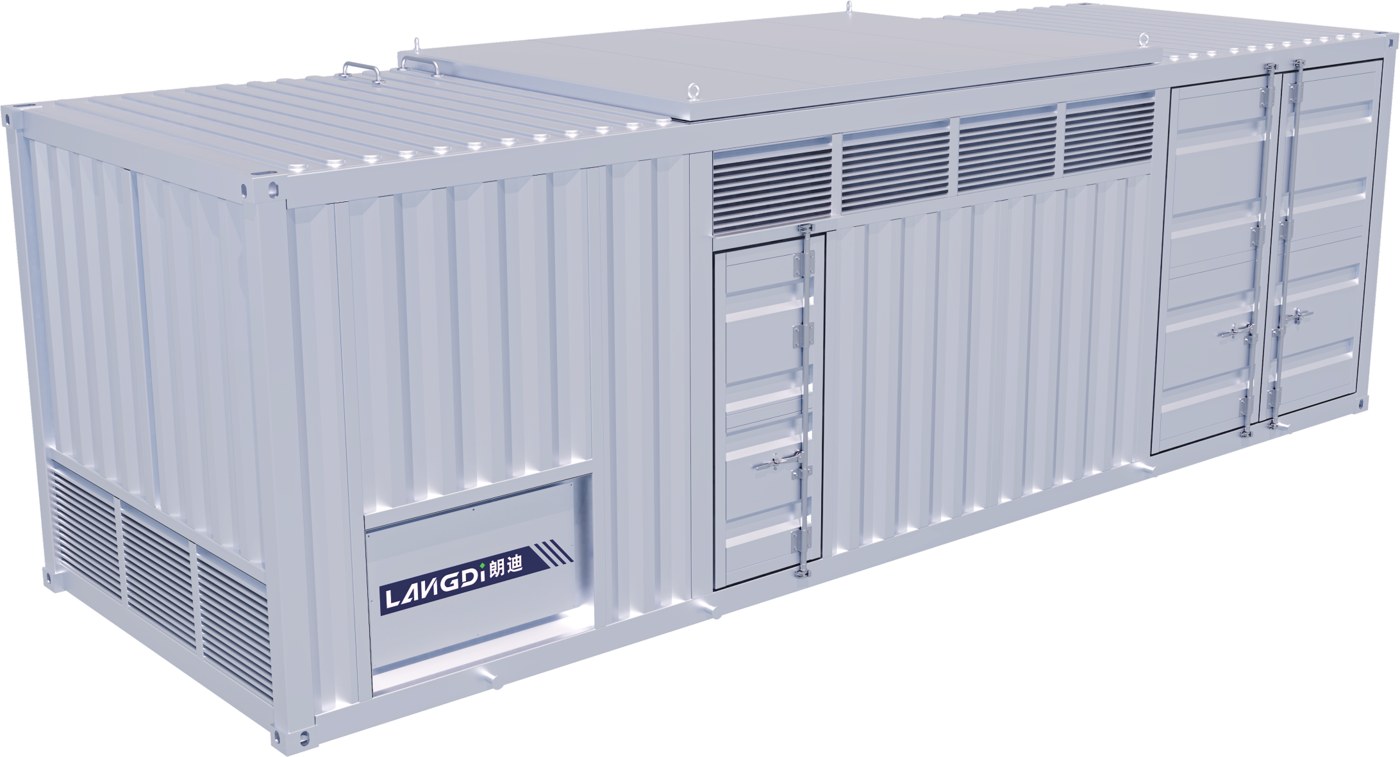

Weak Grid Test Fixture
Simulates weak-grid conditions such as high network impedance, voltage/frequency fluctuation and three-phase imbalance to verify the grid adaptability of inverters and converters.
نظرة عامة
The weak grid test fixture is a special testing device that simulates weak-grid conditions such as high distribution-network impedance, voltage/frequency fluctuation and three-phase imbalance, verifying the grid-connected adaptability of inverters and converters. It is mainly used for pre-grid-connection compliance testing and R&D verification of new-energy equipment, and can set different ratios of short-circuit capacity to equipment capacity (SCR = 1.0–10) to reproduce a low-SCR grid environment.
التطبيقات
- Compliance testing of new-energy grid-connected equipment
- Inverter weak-grid adaptability R&D verification
- Pre-connection verification of storage converters
المواصفات
| Voltage range | 0–1000V |
|---|---|
| Current range | 0–3000A |
| Frequency | 50/60Hz |
| Power | 0–2000kW |
| Short-circuit ratio | SCR 1.0–10 configurable |
هل تحتاج إلى تكوين وعرض سعر لجهازك؟ يرد مهندسونا خلال يوم عمل واحد.
الاستفسار عن هذا المنتجمنتجات ذات صلة

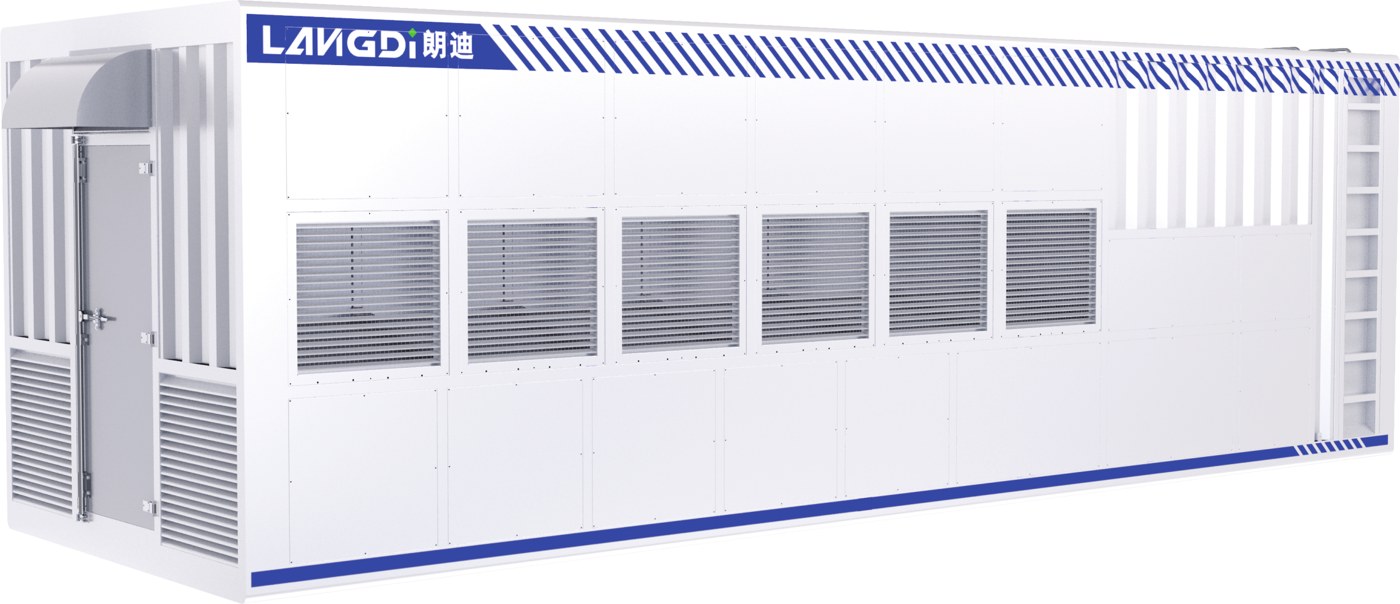

Uses precision RLC loads to simulate islanding after grid failure, verifying that grid-tied inverters and storage converters detect islanding and disconnect reliably.
